To properly lift the Colorado/Canyon suspension 5.5 Inch, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers.

Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning.

A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together.

Factory struts are retained and relocated with top spacers to gain a full 5.5 Inch of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel.

In the rear, a new block and U-bolt kit provided 4 Inch of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.
Quick Specs:

• Front Lift Method: Strut Spacer
• Front Lift Height: 5.5 inch
• Rear Lift Method: Block
• Rear Lift Height: 4 inch
• Shocks Included: Yes

Shocks:

• FOX 2.0 Adventure Series
  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting silver coated finish

Features:

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Rear lift block and longer u-bolts for easy installation and level stance

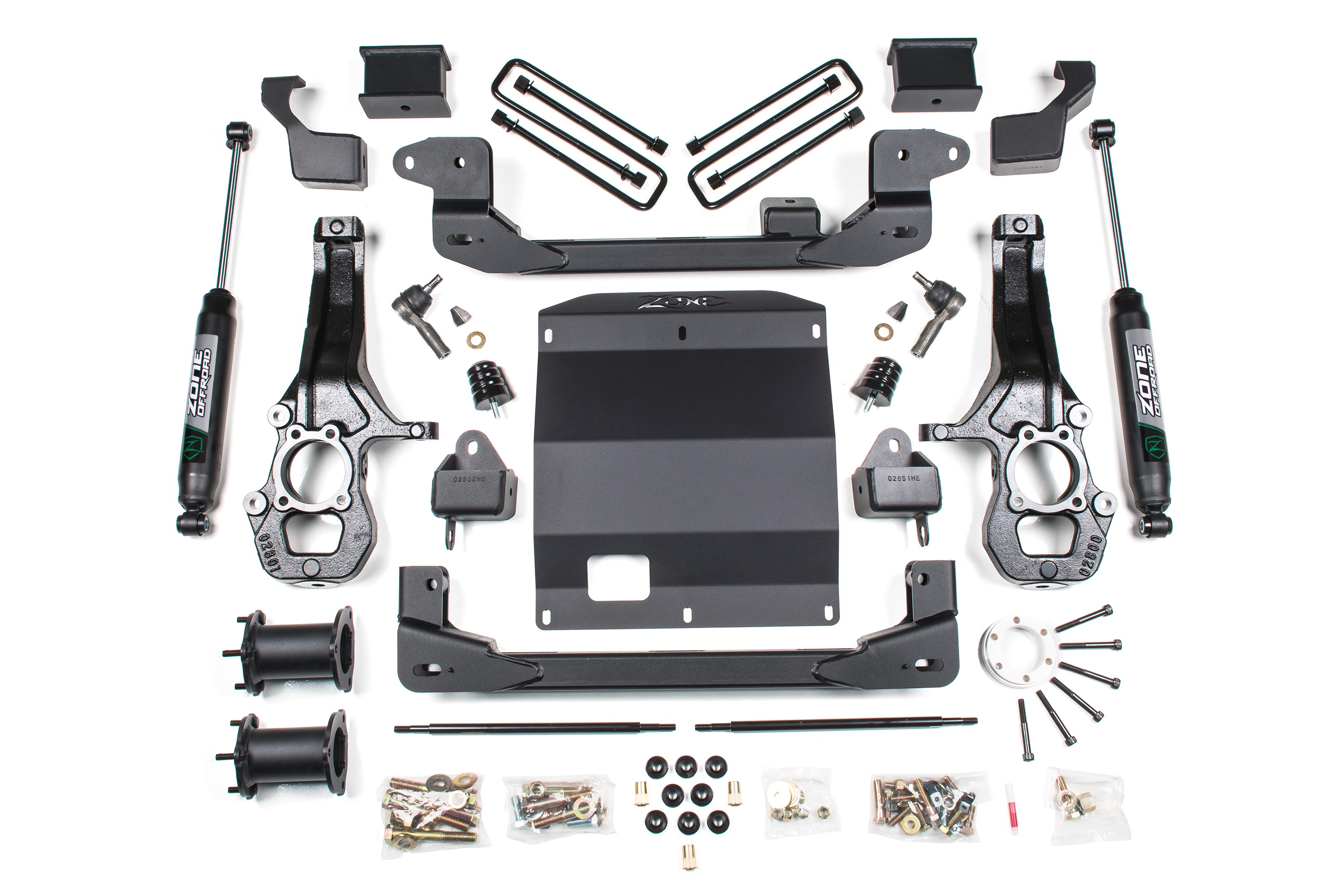

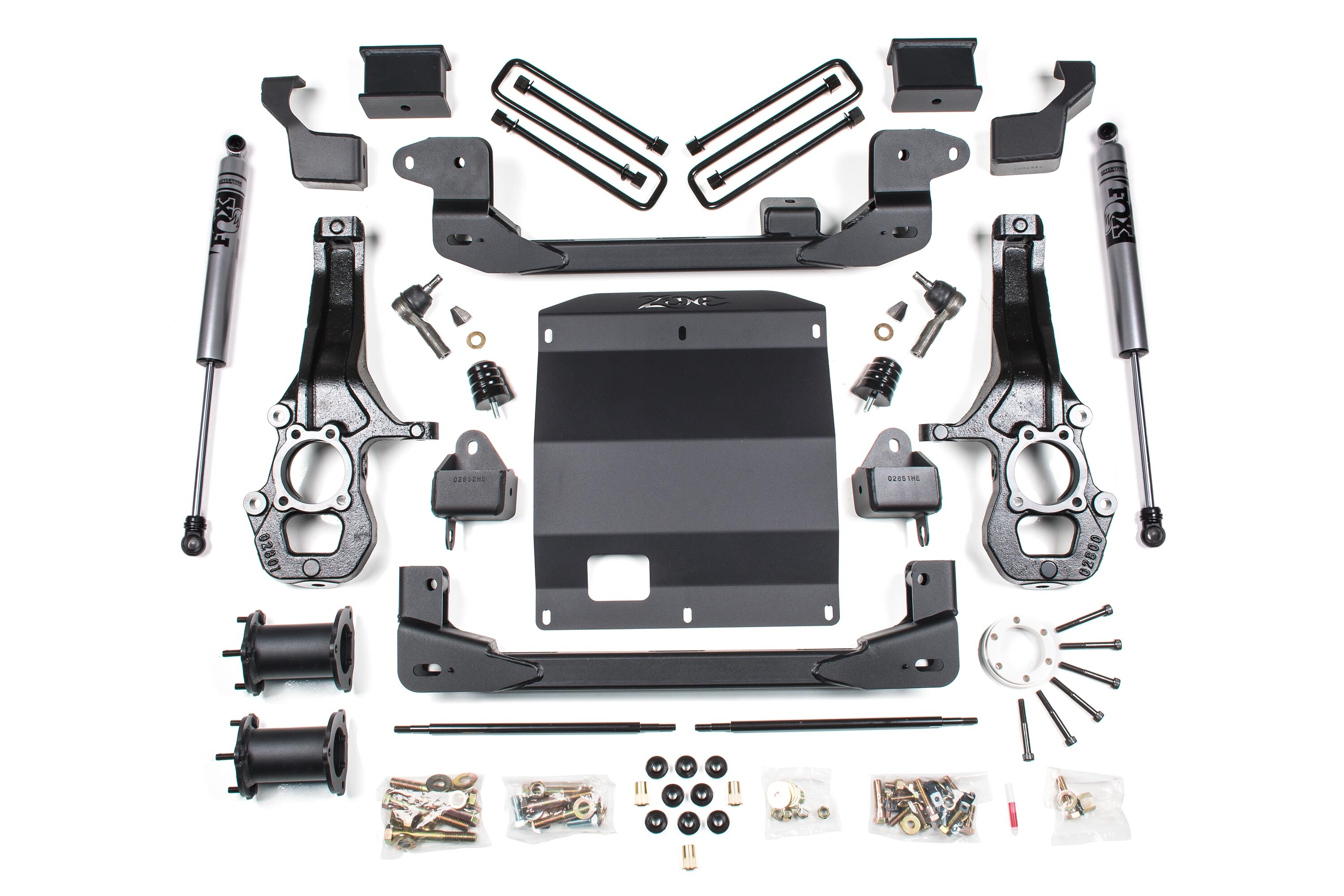

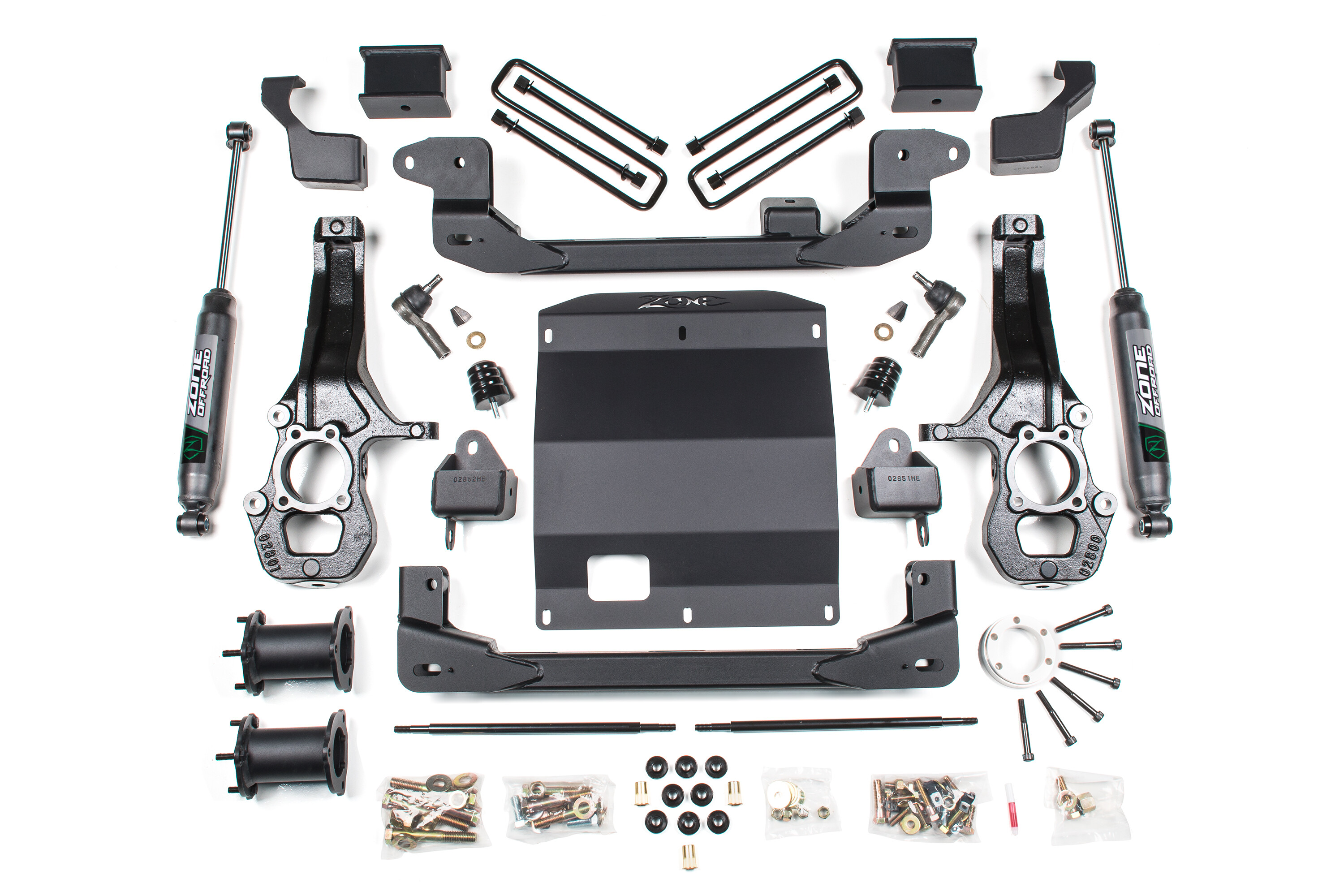

Kit Components:

• FOX98450750 (x2)
• ZONC2409
• ZONC2550
• ZONC2551
• ZONC2552
• ZONC2553
• ZONC2554
