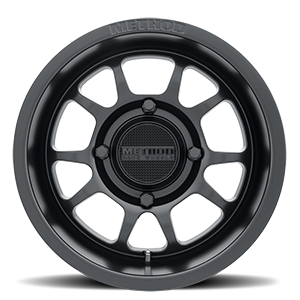

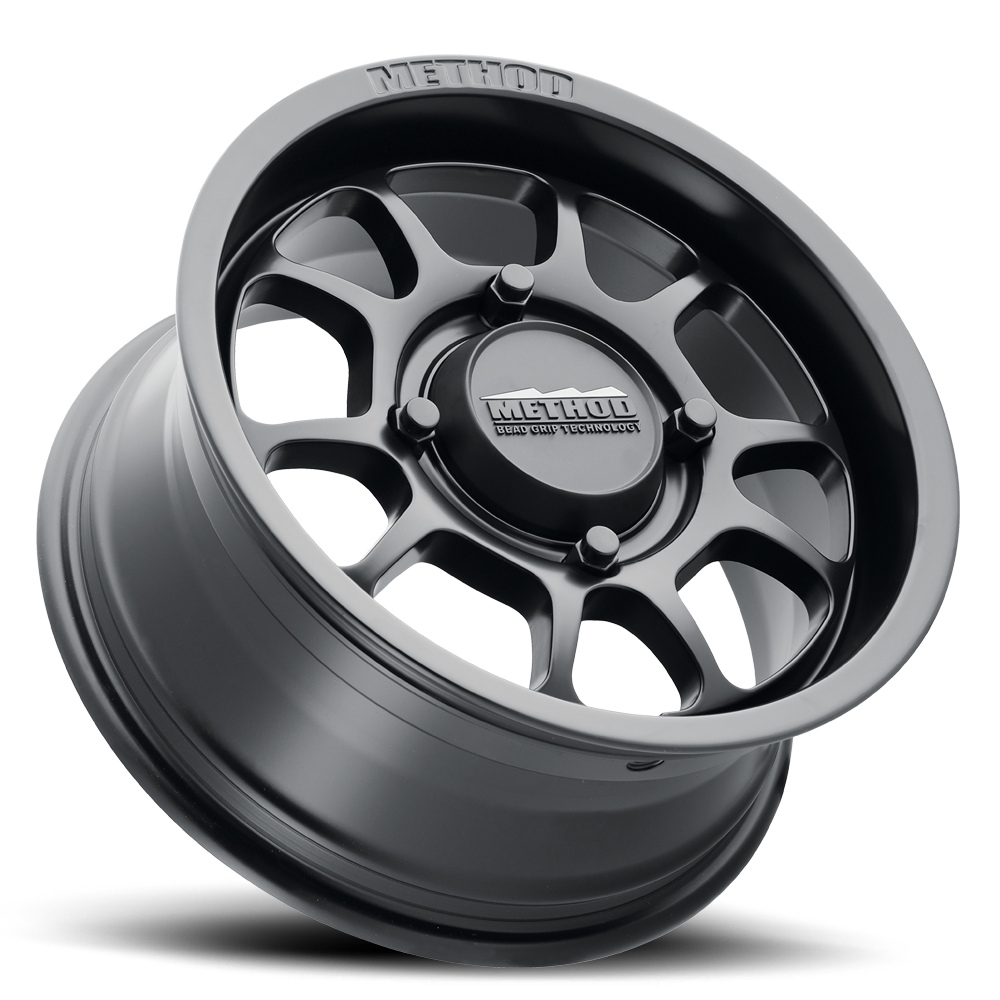

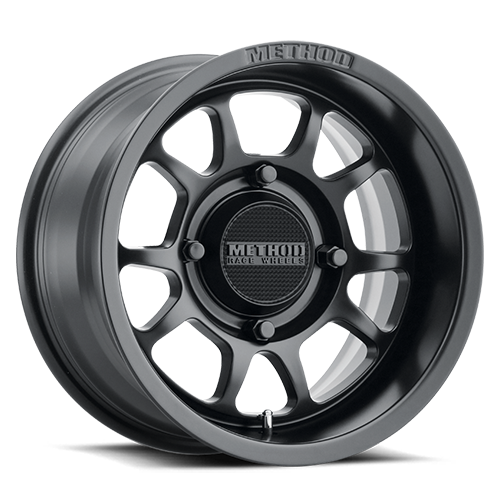

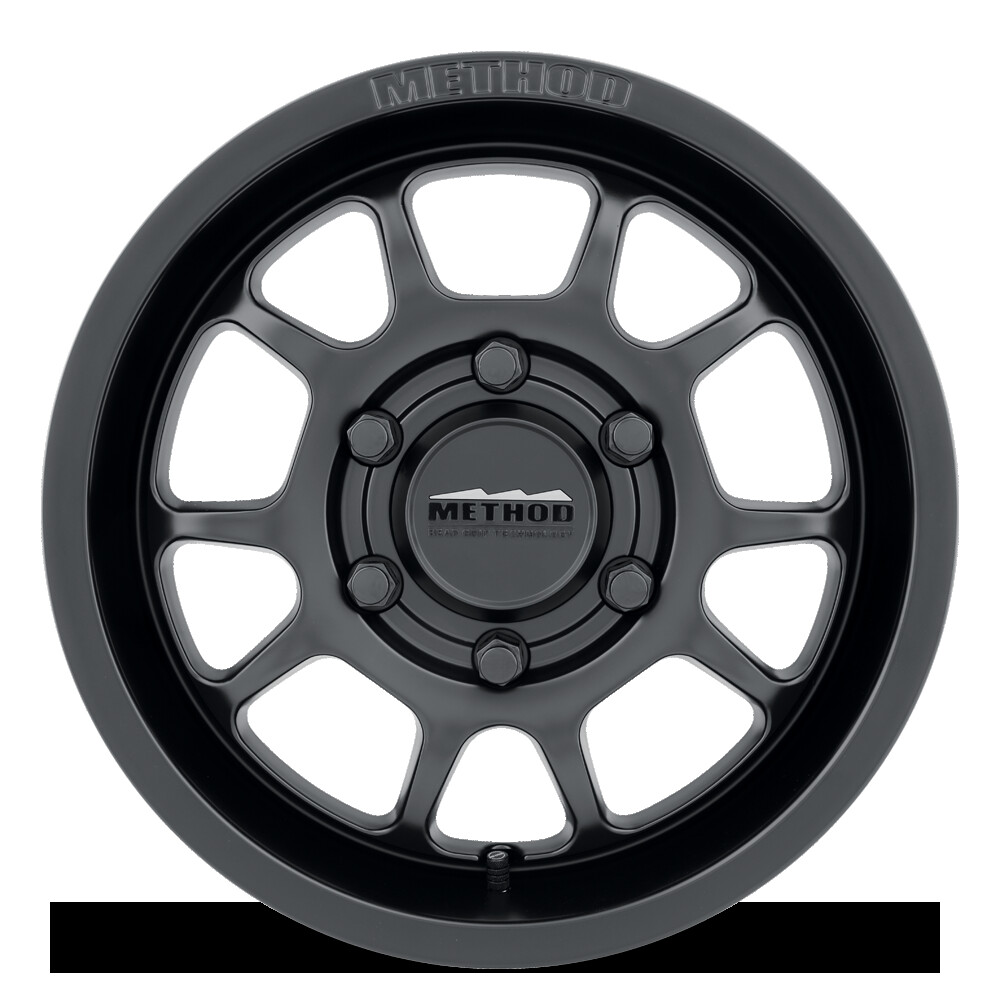

The 409 Bead Grip UTV wheel brings the styling of the 313 Standard Series wheel to the UTV Bead Grip lineup. It was also the first wheel in the UTV Series lineup to integrate the Method Bead Grip technology.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Debossed Method logo on outer lip
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo

Details:

• Series: UTV (4XX)
• Model: MR409 Bead Grip
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 10 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 0 mm
• Backside Spacing Inch: 5.5 Inch
• ATV Offset B+F: 5+5
• Hub Bore mm: 78.3 mm
• Wheel Weight LBS: 18.2983677613448 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Matte Black
• Application: 15x10, 6x5.5, 0 OS, 1600 lbs
• Cap Part: CP-T080K104
• Cap Type: Snap In
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 180 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 15.9
• Spoke Depth At 120mm: 25
• Spoke Depth At 160mm: 24.19
• Inner Wheel Radius At 50mm: 168
• Inner Wheel Radius: 165
• Cap Bore mm: 78.3 mm
• Cap Clearance Height mm First Obstruction: 37
• Cap Clearance Height mm End Of Cap: 37
• Lip Size mm: 110 mm
• Lip Size Inch: 4.33 Inch
• CBM: 0.0676060480000003
