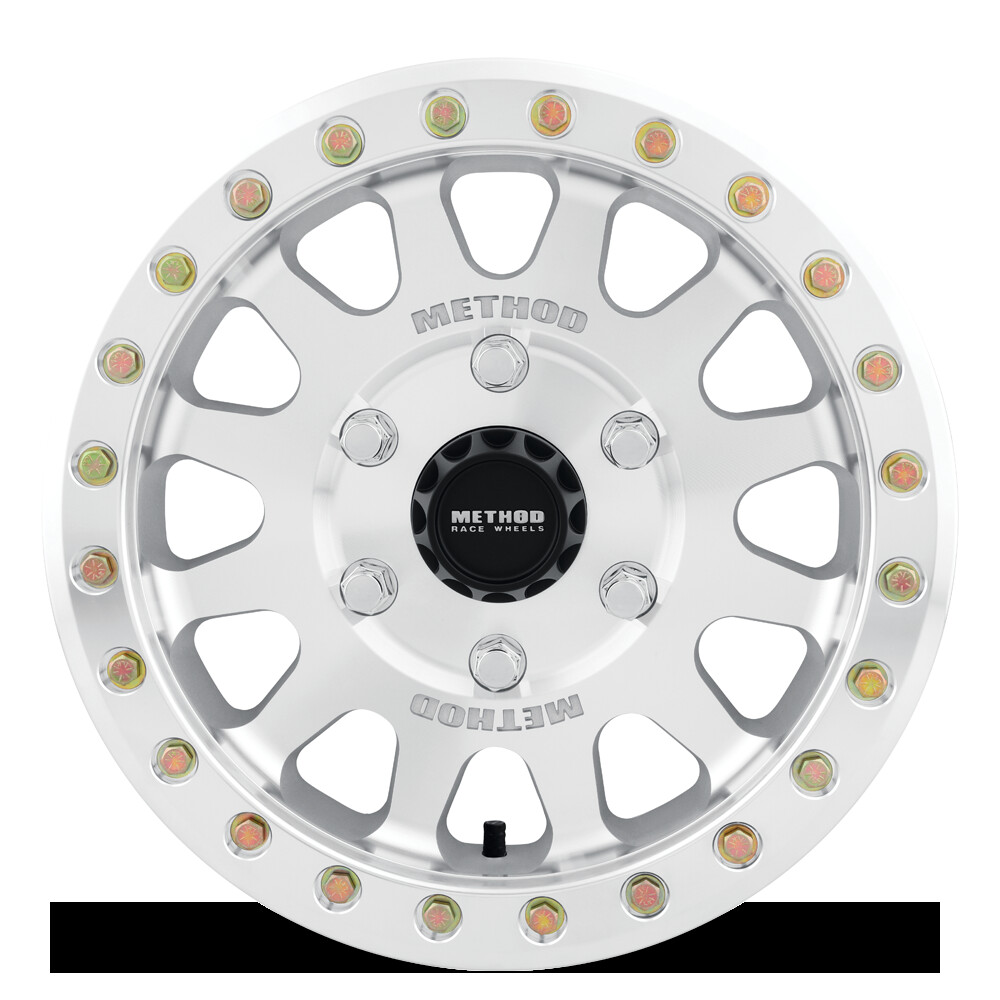

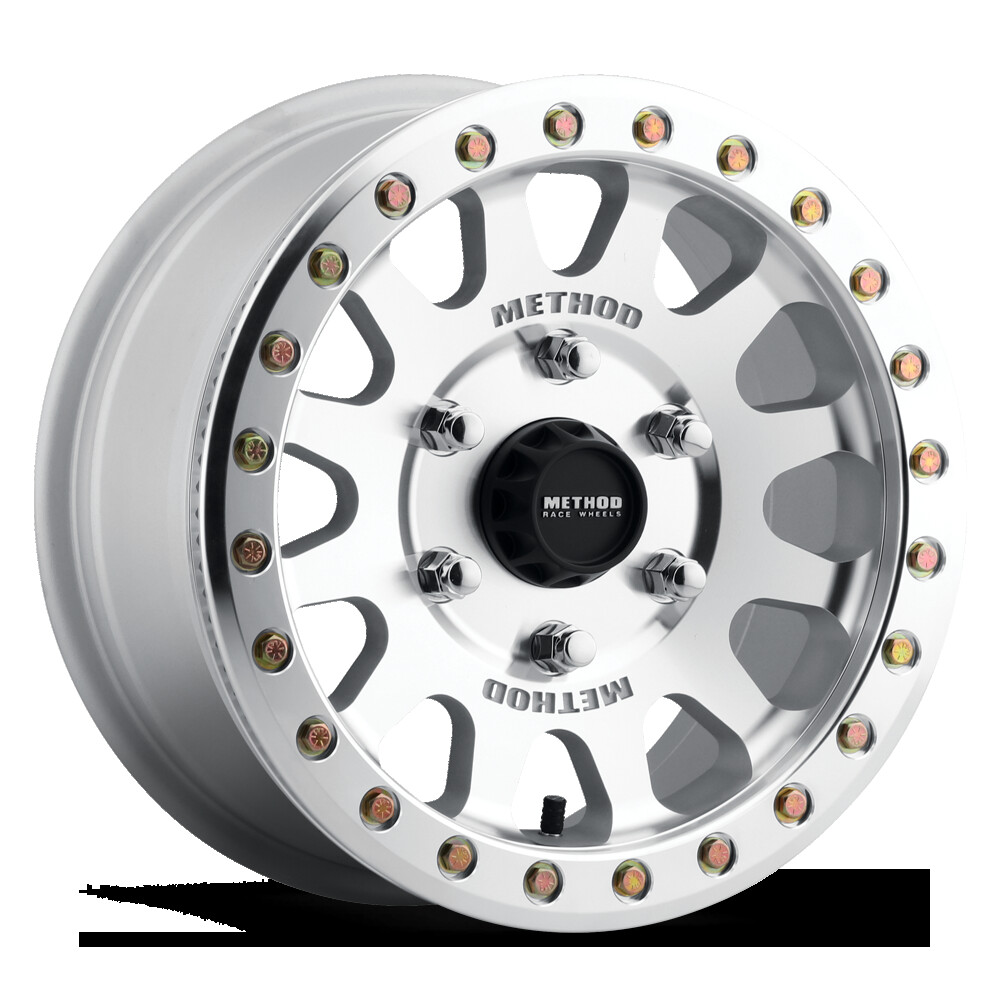

The 401 Beadlock UTV wheel was developed for the serious off-road enthusiast and boasts an iconic 12 window design. It also features a push through center cap with embossed Method Race Wheels logo.

The Schrader valve was strategically placed between wheel spokes for extra protection in harsh riding environments.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Reinforced inner lip provides extreme strength and durability
• Protected Schrader valve place between wheel spokes
• Forged 6061 aluminum V.1 beadlock ring
• Grade 8 zinc-plated beadlock hardware kit included
• Push through center cap with embossed Method logo

Details:

• Series: UTV (4XX)
• Model: MR401 UTV Beadlock
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 7 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 38 mm
• Backside Spacing Inch: 5.3 Inch
• ATV Offset B+F: 5+2
• Hub Bore mm: 81.8 mm
• Wheel Weight LBS: 20.356015541737 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Machined - Raw
• Application: 15x7, 6x5.5, 38 OS, 1600 lbs
• Cap Part: CP-S128T82
• Cap Type: Push Thru
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 162 mm
• Spoke Depth At 90mm: 5.3
• Spoke Depth At 100mm: 6.8
• Spoke Depth At 120mm: 8.5
• Spoke Depth At 160mm: 8.2
• Inner Wheel Radius At 50mm: 179.4
• Inner Wheel Radius: 168.2
• Cap Bore mm: 78.3 mm
• Cap Clearance Height mm First Obstruction: 27.8
• Cap Clearance Height mm End Of Cap: 44
• Lip Size mm: 20 mm
• Lip Size Inch: 0.79 Inch
• CBM: 0.051529
