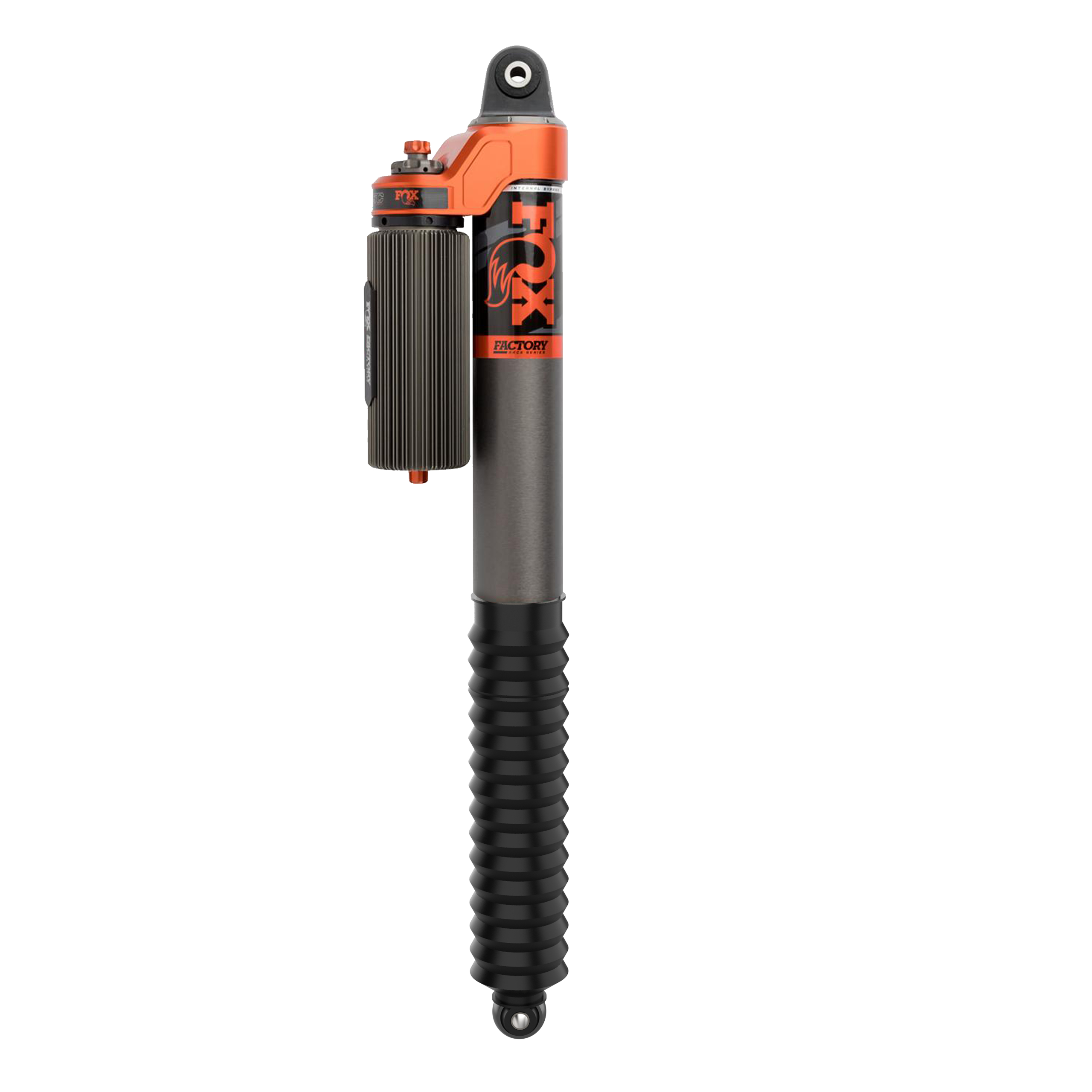

3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (dsc) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control.

The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports.

FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.

Features and Benefits:

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Black Anodized CNC Machined Aluminum Components

Details:

• Lift Height: 0-1 Inch Lift
• Diameter: 3.0 Inch
• Location: Rear
• Series: Factory Race
• Top: Eyelet
• Travel Length: 10.72 Inch
• Bottom: Eyelet
• Extended Length: 28.3 Inch
• Collapsed Length: 17.58 Inch
• Reservoir Type: Piggyback
• Shock Type: Smooth Body Internal Bypass
• Material: Aluminum
• Warranty: 1 Year
• Sold As: Kit

Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
